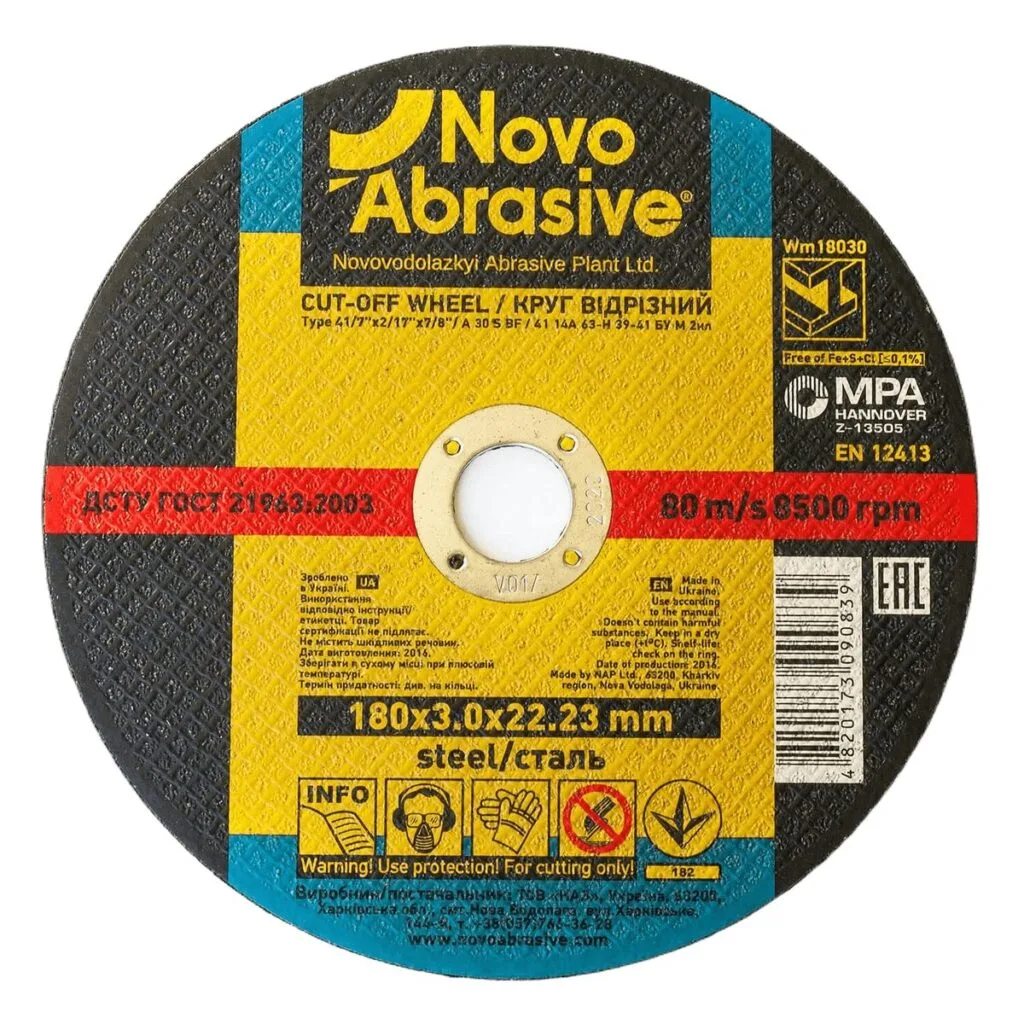

Cutting disc NOVOABRASIVE 41 180×3.0×22.23 mm, for metal
Cutting disc NOVOABRASIVE 41 180×3.0×22.23 mm, for metal — Cutting disc for metal 180 mm × 3 mm × 22.23 mm bore. An increased 3 mm thickness — maximum life on large cross-sections and stationary machines. Main operations: Cutting. Suitable for materials such as Steel, Cast iron, Aluminium, Non-ferrous metals. Widely used in: Metalworking, Construction, Automotive industry, Pipe manufacturing. Profi series — optimal price/quality ratio for daily professional work. Stable cutting quality and durability. Made with Aluminium oxide abrasive (specification A30 SBF), which delivers consistent finish quality and long service life. Maximum speed up to 8600 rpm — safe operation on standard angle grinders. Packaging — 25 pcs, transport box — 50 pcs. Certified by MPA Hannover (Germany) — independent confirmation of safety and quality to EN 12413.
All sizes of the NovoAbrasive Profi series
Features
Basic parameters
| Trademark | NOVOABRASIVE |
| Series | Profi |
| Product type | Cutting disc for metal |
| Diameter, mm | 180 |
| Thickness, mm | 3 |
| Bore, mm | 22.23 |
| Max. speed, rpm | 8600 |
| Country of manufacture | Ukraine |
Package
| SKU | WM18030 |
| Barcode (EAN) | 4820173090839 |
| Packaging, pcs | 25 |
| Weight | 0.175 kg |
| Transport box, pcs. | 50 |
Material
| Specification | A30 SBF |
| Abrasive | Aluminium oxide |
Certification
| Safety standard | EN12413 |
| MPA Hannover | Certified |
| ISO 9001:2015 | Confirmed |
Application
Operations
Compatible tool
Processed materials
Industries
Documents
Frequently asked questions
What materials are 180 mm cutting discs suitable for?
Cutting disc NOVOABRASIVE 41 180×3.0×22.23 mm, for metal, suitable for processing: Steel, Cast iron, Aluminum, Non-ferrous metals. Choose the appropriate operating mode depending on the hardness of the material.
What is the maximum rotation speed for the NOVOABRASIVE 41 180×3.0×22.23 mm Cutting disc, for metal?
The maximum permissible speed is 8600 rpm. Before starting work, make sure that the idle speed of your tool does not exceed this value. Exceeding the speed may lead to product destruction.
Which tool is suitable for a diameter of 180 mm with a fit of 22.23 mm?
For working with cutting discs with a diameter of 180 mm with a seating hole of 22.23 mm, the following are recommended: Angle grinder (ANGLE GRINDER).
How does the Profi series differ from other NovoAbrasive series?
NovoAbrasive offers three quality series: Standard — an economical series for household and infrequent professional use. Provides basic quality and safety at an affordable price. Profi — a professional series with an optimal balance of price and performance. Suitable for daily intensive work. Extreme — an industrial series for the toughest conditions. Maximum resource, increased productivity and stable quality under intensive load. Your product — the Profi series.
What does the MPA Hannover certificate mean and why is it important?
MPA Hannover (Materialprüfungsanstalt) is an independent German laboratory accredited for testing abrasive tools according to EN 12413. The certification confirms that the product has passed tests for breaking speed, imbalance, strength and safety. This is a guarantee that the tool is safe under the conditions of use.
What safety standard does this product meet?
NOVOABRASIVE 41 Cutting disc 180×3.0×22.23 mm, metal complies with the safety standard EN12413. This standard regulates the requirements for strength, marking and safe use of abrasive tools.
How many pieces are in a package and how to order?
Standard packaging contains 25 pcs. Transport box — 50 pcs. To order, send a request via the form on the website or contact a regional distributor. We will respond within 24 hours.
Where are NovoAbrasive products manufactured?
NovoAbrasive is a Ukrainian manufacturer of abrasive tools. The products are manufactured on modern equipment using European components and are certified in accredited laboratories in Europe, including MPA Hannover (Germany).
What is the difference between the EXTREME, PROFI and STANDARD series?
EXTREME — industrial series for heavy-duty conditions and long-term use. PROFI — professional series with optimal price/quality ratio. STANDARD — economical series for household use.
Why does the disc "burn" when cutting?
This may be due to: too much pressure, the wrong disc (bond too hard), a worn disc, or too low tool speed.
